Match with Electrosurgical Generator(Unit), Radio Frequency Generator(Unit) and other High Frequency Equipment.

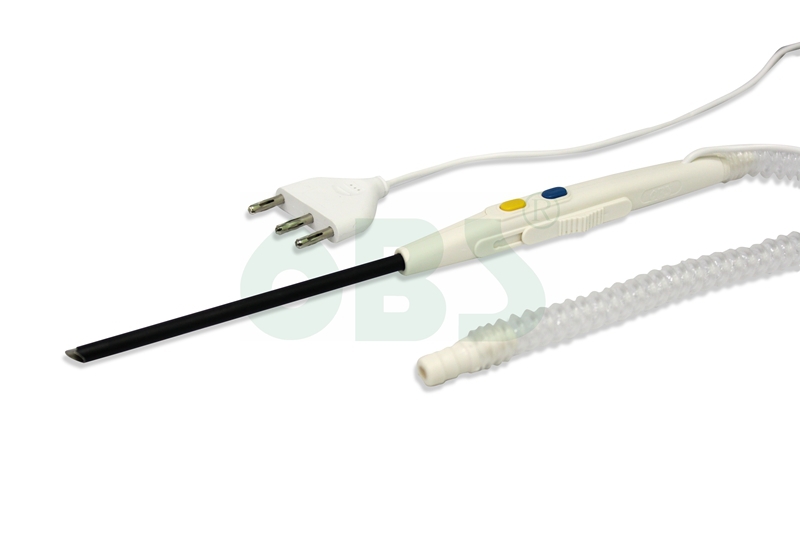

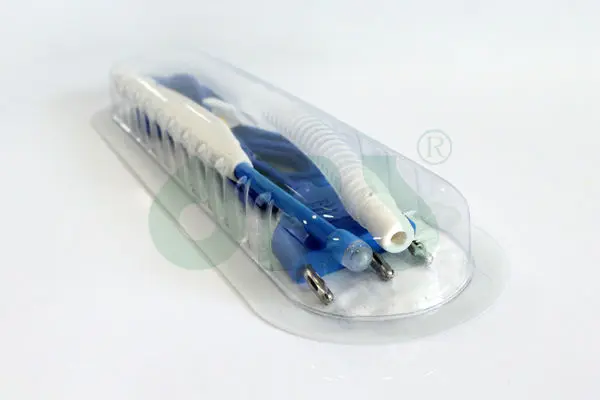

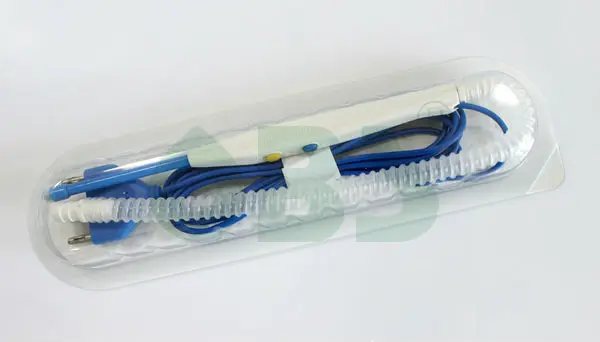

These devices are single use supplied sterile. Check plug matching on generator base and connect. Press CUT/yellow button for cutting and COAG/blue button for coagulation,push button on side for shortening and extending the suction tip.Maximum voltage is not be exceed 90KV peak

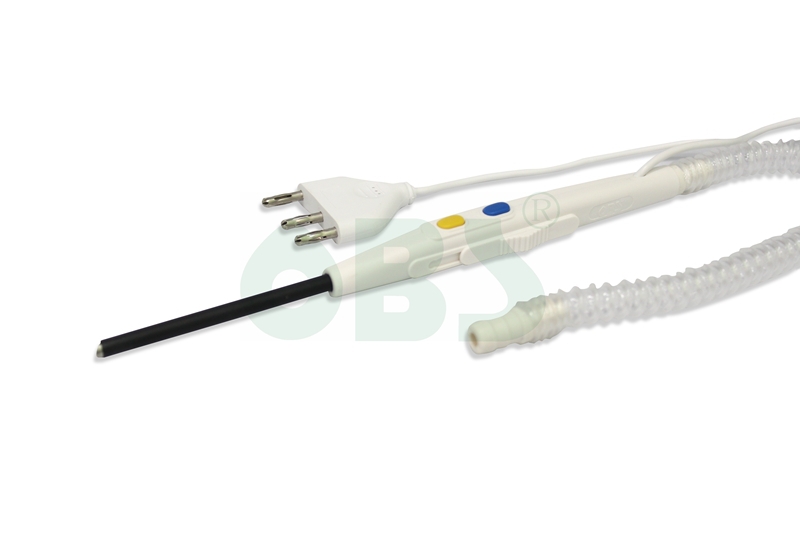

Equip with smoke and liquid suction function. Flexible electrode tip can be extended from suction tube when cut or coagulate and shortened from suction tube when suck.
Switches have a high level of tactile feedback - surgeons can hear and feel the switch engage, preventing accidental activation of the device.
Designed with the surgeon in mind
-Slim and lightweight, tapered ergonomic design, streamlined design,
-Slip-proof handling and water resistant Rocker or Push-Button Switch
-Switch and buttons designed for smooth activation
-Equip with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.
-With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.
#0069-01,equiped with 25mm length of suction tube
#0069-02,equiped with 85mm length of suction tube
#0069-03,equiped with 130mm length of suction tube

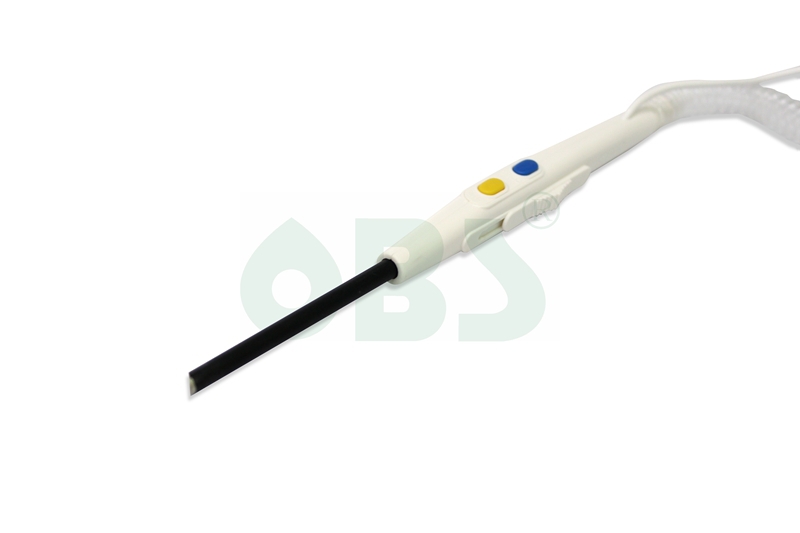

Shorten the electrode in suction

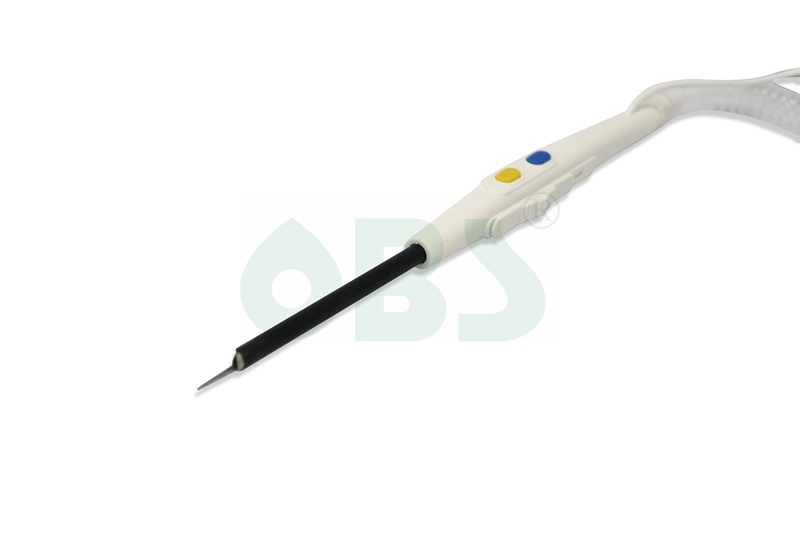

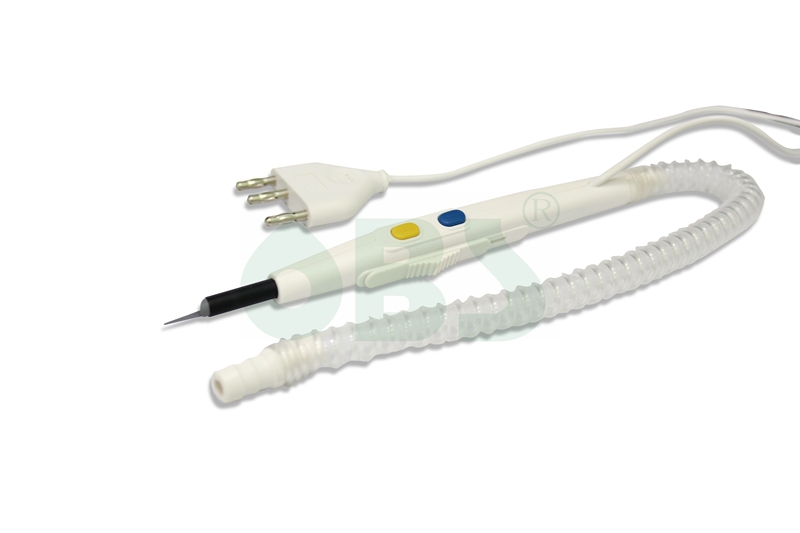

Extend the electrode in cutting or coagulation.

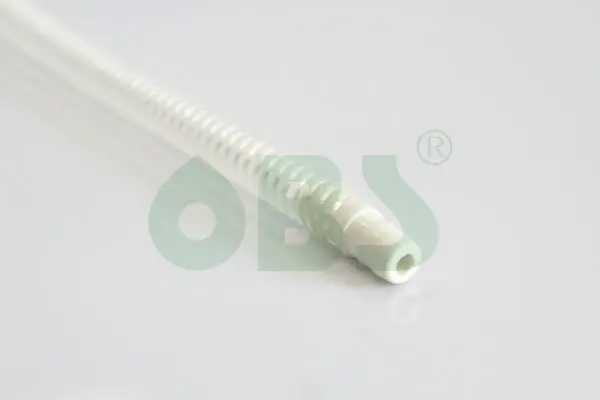

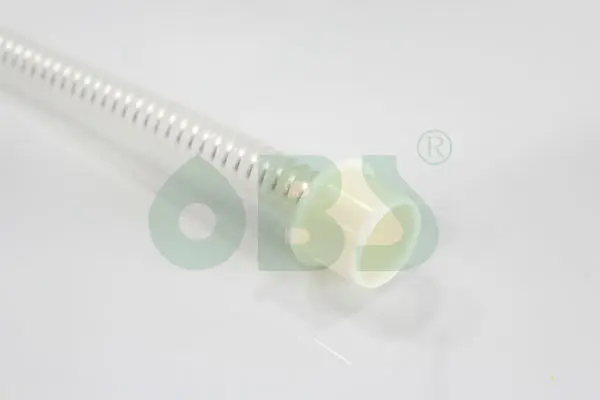

Tube ends for selection to be fit with the suction machine
These devices should never be used when:
There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.
These devices fail the inspection described herein.
In the presence of flammble gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O),or in oxygen-riched environments.
Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
